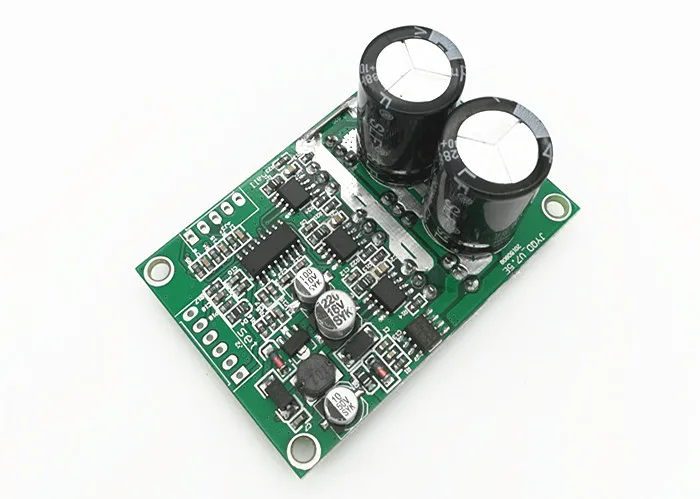

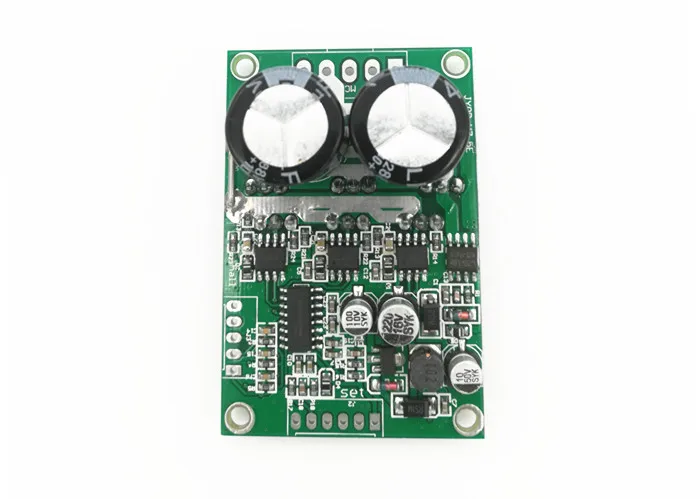

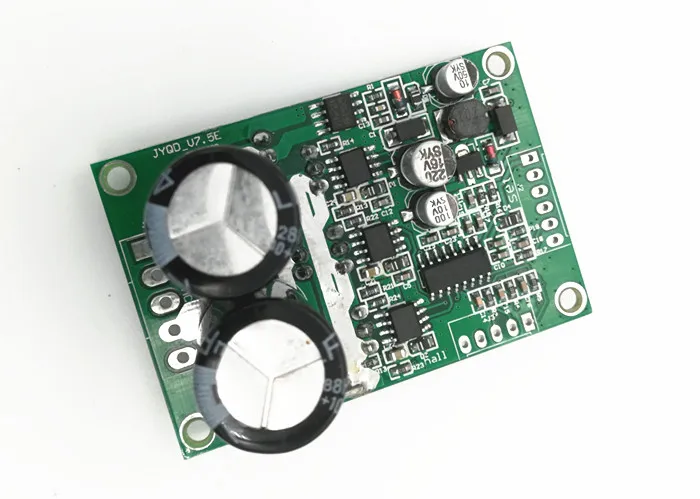

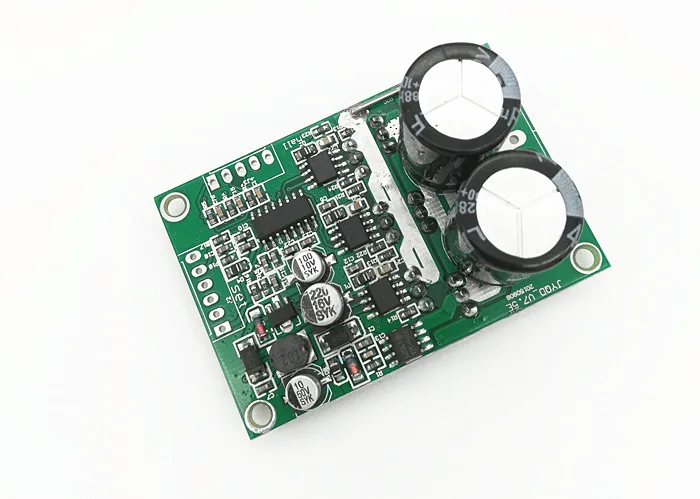

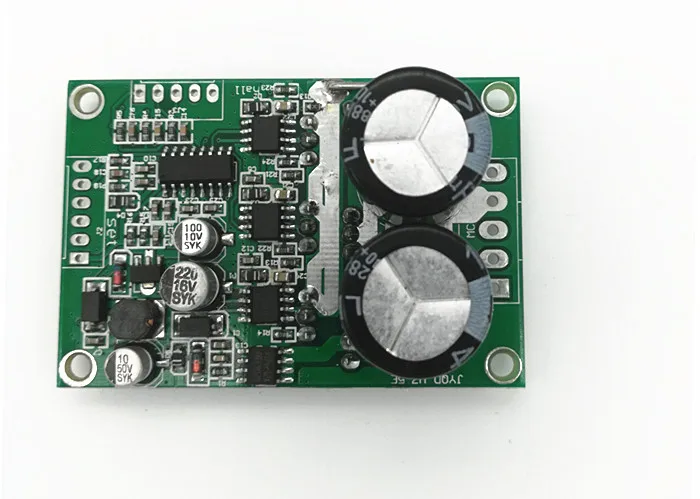

JYQD V7.5E 3 Phase BLDC Driver Board For Hall Sensored Motor

Name: JYQD V75E 3 Phase BLDC Driver Board For Hall Sensored Motor
Brand: JUYI
Price: 1 USD

China JYQD V7.5E 3 Phase BLDC Driver Board For Hall Sensored Motor wholesale

Brand Name : JUYI

Model Number : JYQD-V7.5E

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,L/C,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-10 days

Packaging Details : PE bag+ carton

Working voltage : 72VDC

Working current : 15A

PWM speed control : YES

Speed pulse signal output : Include

Shape : Rectangle

Color : Green

Contact Now

Product Description

JYQD-V7.5E is very compact size BLDC motor driver board with necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.
Its widely applied by the worldwide clients almost for 8 years,its mature and stable design are competent for many applications.

JYQD V7.5E 3 Phase BLDC Driver Board For Hall Sensored Motor

MODEL NO.	JYQD-V7.5E
OPERATING TEMPERATURE	-20—85℃
OPERATING VOLTAGE	36V-72VDC
MAX WORKING CURRENT	15A
PWM SPEED REGULATION	PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION	0-5V

Application guidelines

1: Confirm that the voltage and power paraparameters of the motor not exceed the range as specified.
2: Applicable to Hall brushless dc motor with Hall sensor angle at 120°,not all manufacturers' Hall line sequence are corresponding,you can adjust the Hall line sequence or motor's 3 phase sequence according to to the the actual situation, to achive the best driving effect.

3: JYQD-V7.5E is driver board without housing and heatsink, it can drive the BLDC motor below 100W without any heatsink,but needs normal ventilation.
 4: The "5V" pin on the driver board is forbidden to connect with external power equipment.it is only suit for external potentiometer or switch for speed adjustment,reversing and singnal swtiching operation.

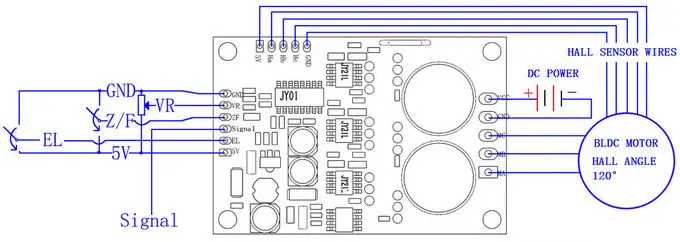

Description of wiring

1. Control port
5V — Driver board internal output voltage, for external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0V low level or connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1V -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.
Singnal—Speed pulse signal output
GND—Used for Driver board internal control
2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
P- ----DC-
P+----DC +
3: Hall sensor port
Ha--- Hall a
Hb--- Hall b
Hc--- Hall c
GND---GND
5V---5V input
4: Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,Power port distance:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

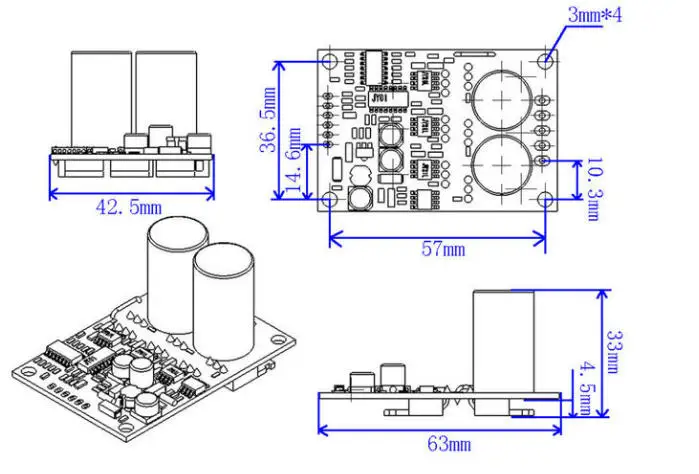

Overall dimensions

Board size customizable to your requests.

Please contact us if you need technical support.
OEM,ODM service are available!
