Original Bextreme Shell Servo Motor Resistance System For Fitness Equipment Medical Rehabilitation Professional Trainer For Sports.

Name: Original Bextreme Shell Servo Motor Resistance System For Fitness Equipment Medical Rehabilitation Professional Trainer For Sports
Brand: Bextreme shell
Price: 1 USD

China Original Bextreme Shell Servo Motor Resistance System For Fitness Equipment Medical Rehabilitation Professional Trainer For Sports. wholesale

Brand Name : Bextreme shell

Model Number : HUB500-48-155T

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/month

Delivery Time : 5-10days

Packaging Details : PE bag+carton

Working Voltage : 48VDC

Maximum Force Output : 220Lbs

Maximum Torque : 40N.m

Rated Power : 800W

Speed : 450rpm

Multi-functional : Yes

Contact Now

Original Bextreme Shell Servo Motor Resistance System For Fitness Equipment & Medical Rehabilitation & Professional Trainer For Sports.

Servo Motor Resistance System's major parameters

The Servo Motor: HUB500-48-155T

Power Input:48VDC

Rated Power:800W

Max Torque Output :40N.m

Rotate Speed:450rpm

Max curernt: 20A

---------------------------------------------------------------------------

Max Resistance Output: 100Kg(220Lbs)

Shaft Length: 155mm

Diameter of the motor:170mm

Weight:4.8Kg

Encoder:Incremental magnetic encoder

Insulation Rating:Grade F

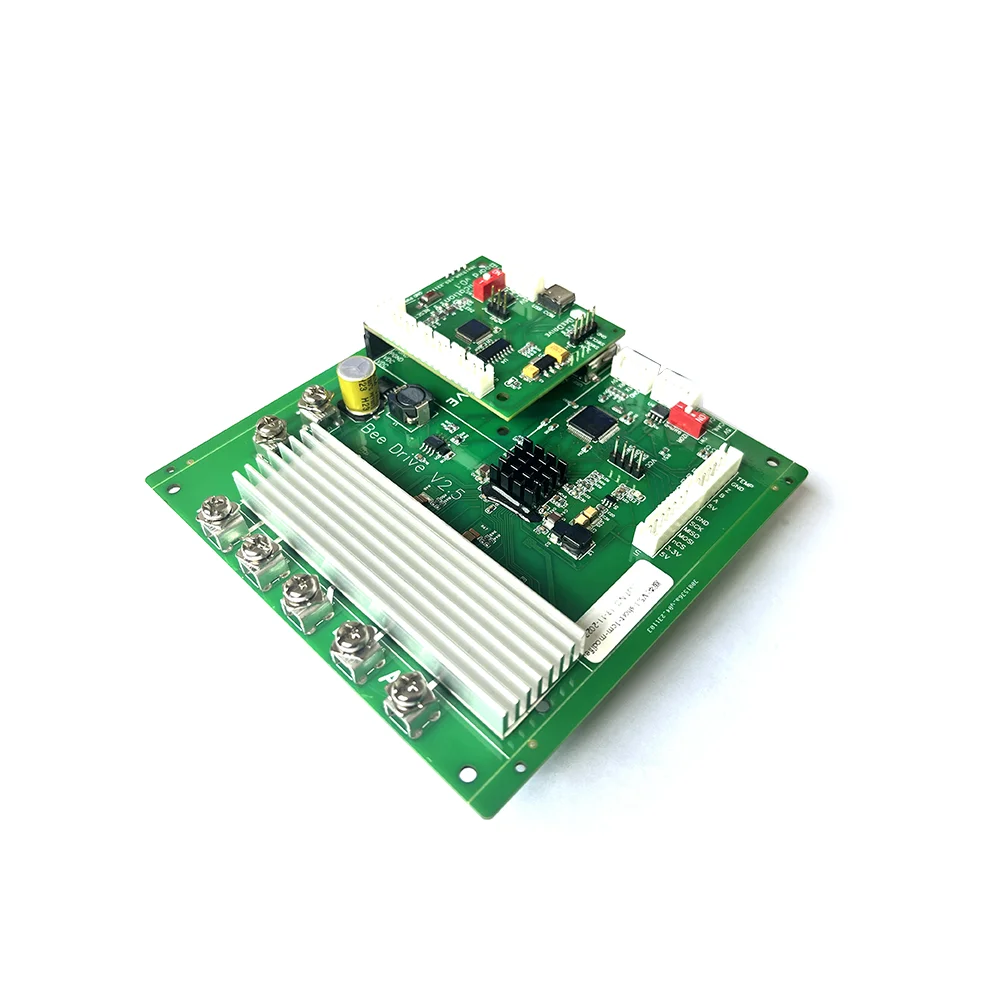

The Controller: Beedrive-V2.5

Rated Voltage:48VDC

Rated Power:1000W

Max Current :30A

Control Method: FOC

Control Port: UART, USB,RS232,CAN

---------------------------------------------------------------------------

Operating Temp: -10-60℃

Operating Humidity:20%-80%

Speed feedback signal output:Yes

Data Feedback: Speed, position, force, temperature.

Automatic Cooling Control: Yes

Servo Motor Resistance System' Features

1: This advanced resistance system utilizes a precise, high-speed Flux-oriented Control (FOC) servo mechanism to generate accurate, stable, and fluid resistance outputs. Its peak output is 110kg, which can be continuously fine-tuned. The compact design features a lightweight motor weighing just 4.8kg, making it straightforward to integrate into both aerobic and anaerobic workout equipment.
2: Unlike conventional mechanical iron plate loading systems, our system delivers comprehensive performance metrics including the length of pull, exerted force, pull speed, retraction force, training duration, and more. By leveraging these precise and detailed outputs, users can effortlessly capture and analyze data, leading to enhanced understanding of their workout efficacy. This facilitates better management of user data, enabling the creation of more tailored and scientifically grounded training programs and courses.
3: Offering diverse training options, the system supports concentric exercises (where the pull force exceeds the retraction force), eccentric exercises (where the pull force is less than the retraction force), elastic workouts (where the greater the pull distance, the higher the force), vibration exercises (employing motor high-frequency vibrations for post-workout muscle relaxation), and a customizable professional mode that adapts to individual preferences.
4: A distinctive feature is the patented safety centrifugal rope return mode (SSR), which users can enable or disable based on their preference. This innovative safety measure ensures that the return speed of the rope is limited in scenarios involving substantial resistance (over 20kg), thereby safeguarding novice users.
5: The system boasts versatile communication interfaces, including UART, USB, RS232 and CAN ports, catering to the varied needs of different customers. It offers high compatibility with various national protocol formats (like HEX, ASCII), ensuring seamless integration across different systems.
6: Our team, backed by extensive industry expertise, not only supplies robust support for resistance system development but also provides professional guidance on machine creation, helping clients navigate through complexities and swiftly bring fully-fledged products to market.

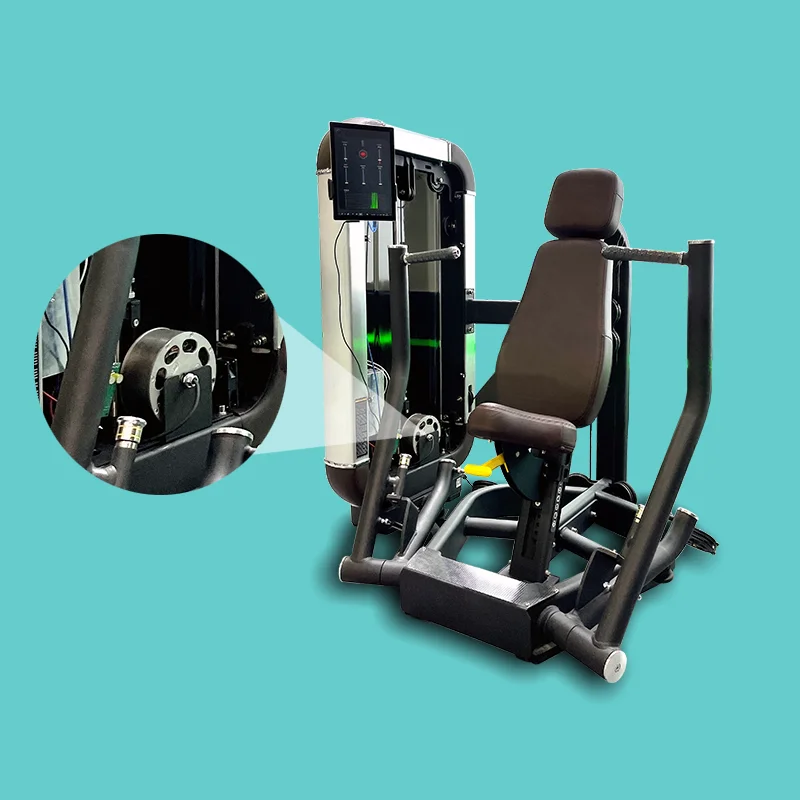

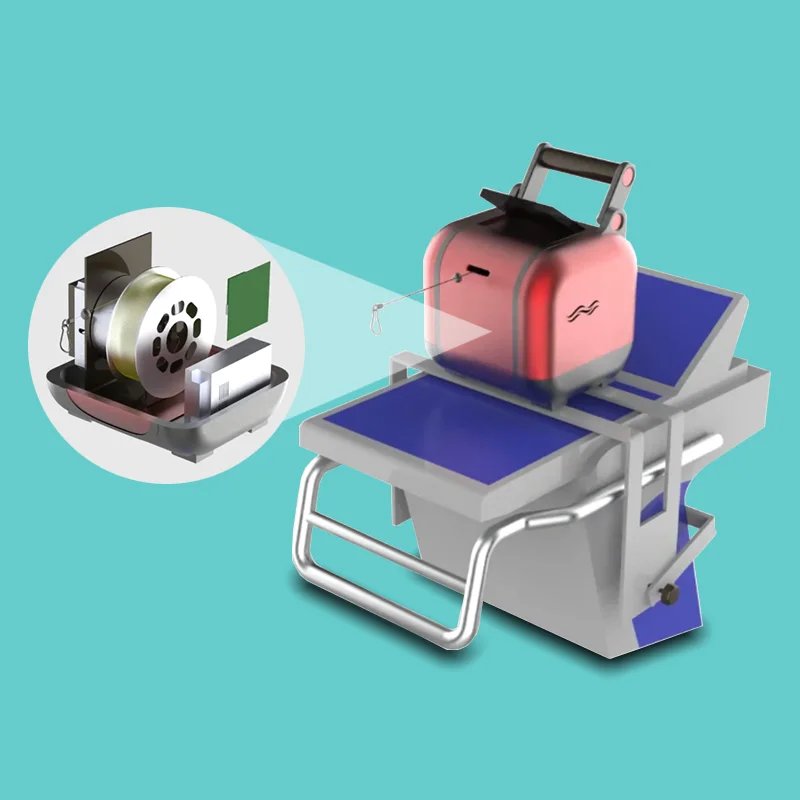

Servo Motor Resistance System's Applications

In order to pursue the ultimate experience in the fitness process of the end user, the servo controller has undergone 14 software and hardware debugging upgrades, striving to match the servo motor with the best degree and achieve the maximum silky smoothness.

Relying on years of experience in the research and development of brushless DC motor products, after 4 generations of motor design improvement and update, the final manufacture of a large torque servo motor suitable for use in the fitness & medical rehabilitation equipment.

Spin Bike/Rowing Machine/Power Rack/Elliptical Trainer/Bench Press Station/Chest Press Machine/Squat Rack/Leg Press Machine/Leg Curl Machine/Shoulder Press Machine/Lat

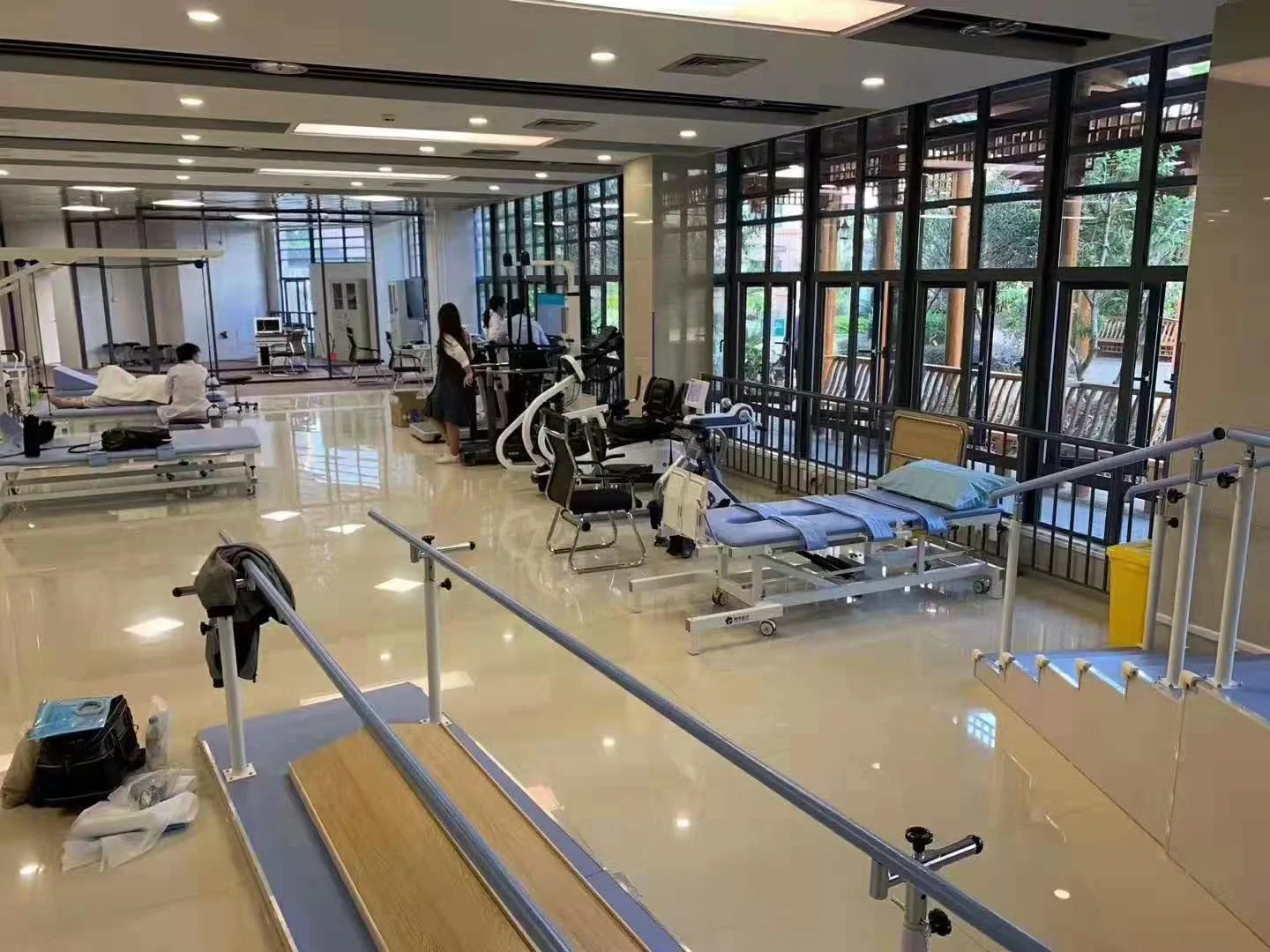

Medical rehabilitation equipment

Upper limb strength recovery training

Lower limb strength recovery training.

Sprint Trainer/Running resistance equipment/1080 Sprint Trainer.

Swimming resistance trainer/50m butterfly stroke resistance device.

Fitness equpment for Gym & home Sprint resistance training High precise resistance for medical Industrial equipment

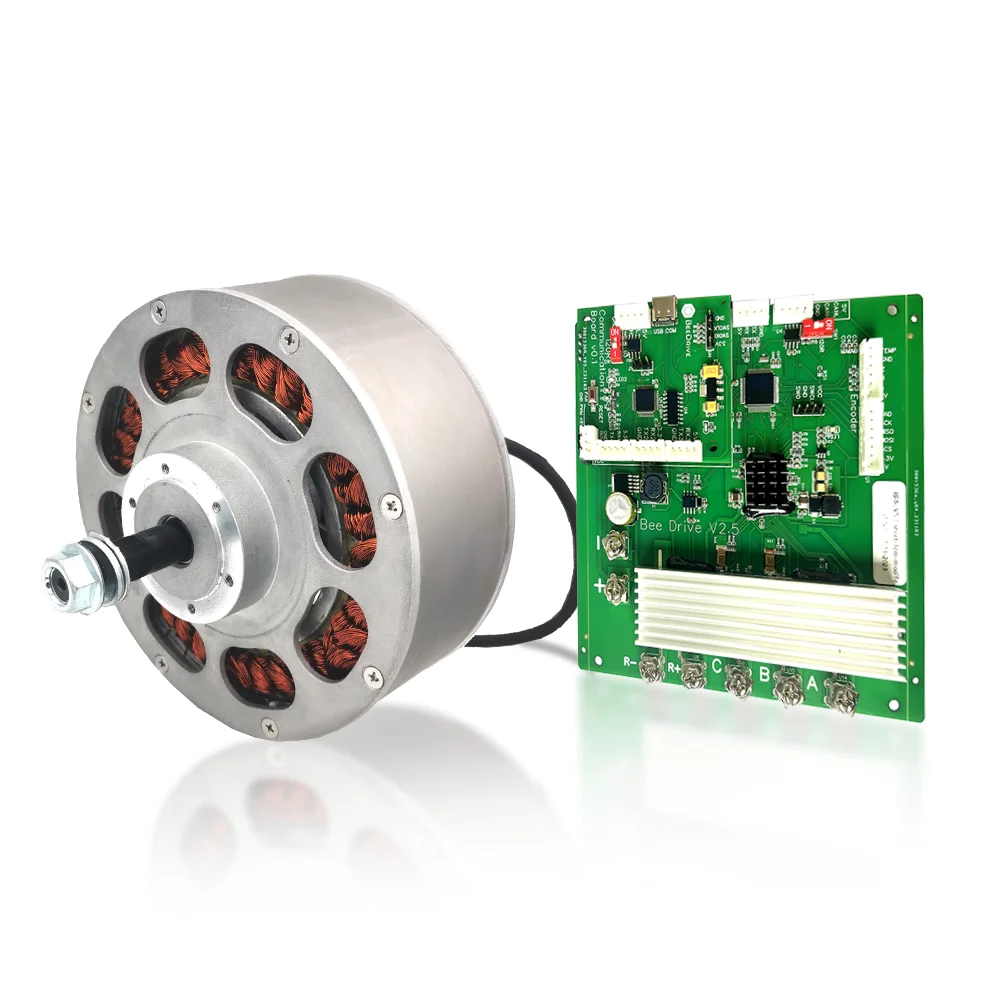

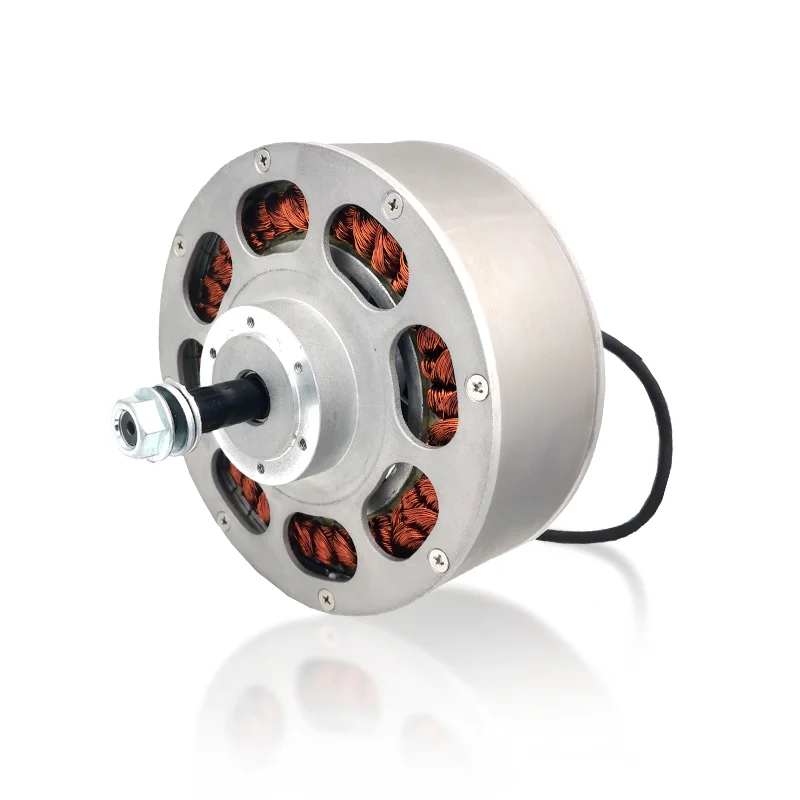

Servo Motor Resistance System's Appearance

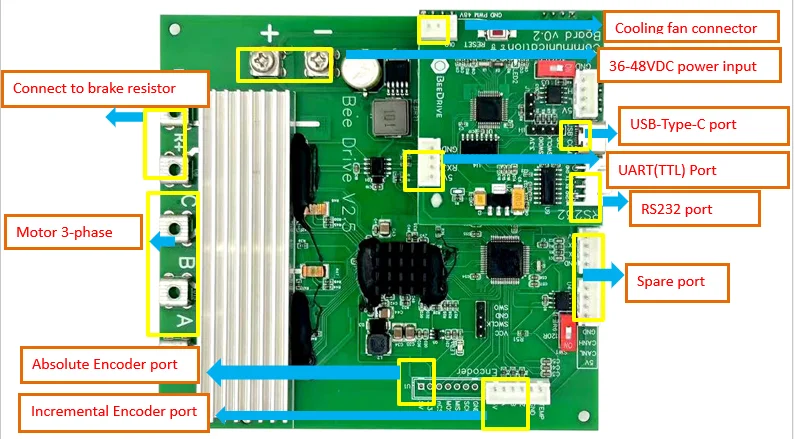

Servo Motor Resistance System's Wiring

Control port introductions

Port	Description	Notes
48VDC power input	+:DC positive pole -: DC positive pole Input voltage :36-48VDC	According to the circuit board identification to prevent reverse connection. Recommend power cord: SWG17(1.5mm2)-copper, length:40-60cm,wire end with terminals to prevent poor contact.
Motor 3-phase connector	A: Blue wire B: Green wire C: Yellow wire	The motor comes with the wires and matched terminals.
Brake resistor port	R+ R-	No need to distinguish positive or negative poles, resistance:1Ω, power:100W
Encoder	Absolute/Incremental Encoder	The motor defaults to an incremental encoder with a temperature signal output.
Cooling fan port	+48V, PWM, GND	The cooling fan is customized by Bextreme Shell
Port of UART	5V output	Can be connected to Bluetooth, small power display, etc., the max power supply current within 100mA
RS232	GND,TX,RX,GND	connect this port only if the controller is power off
USB communication port	Type-C	Can connect peripheral equipment, mainly used for debugging

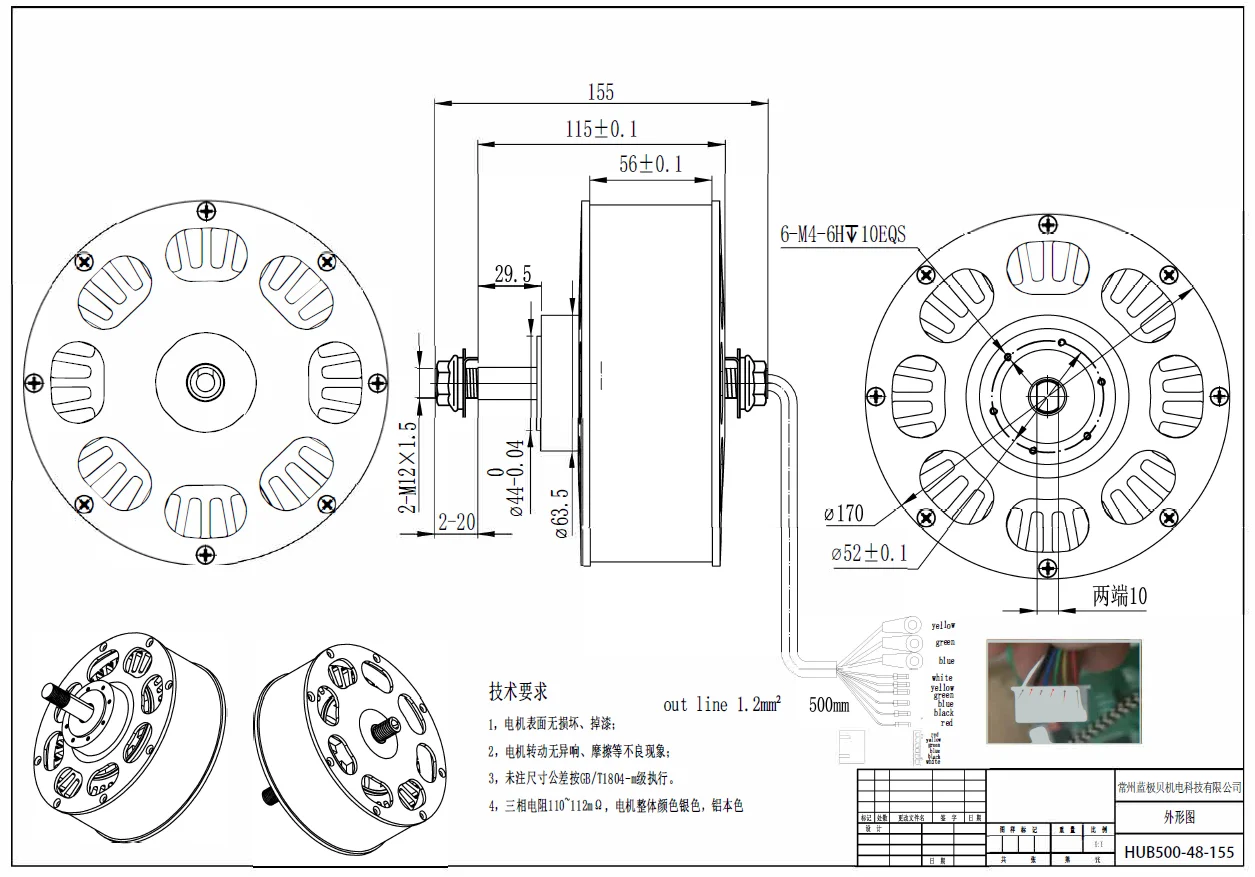

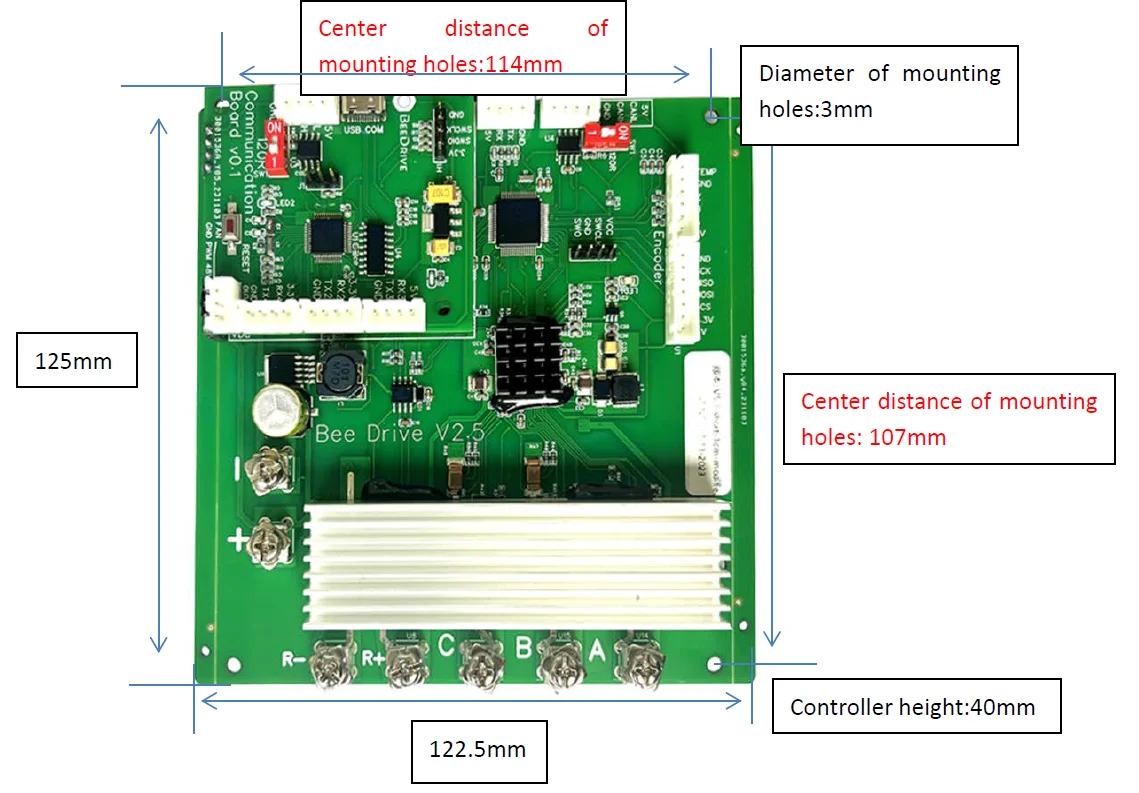

Servo Motor Resistance System's Dimensions

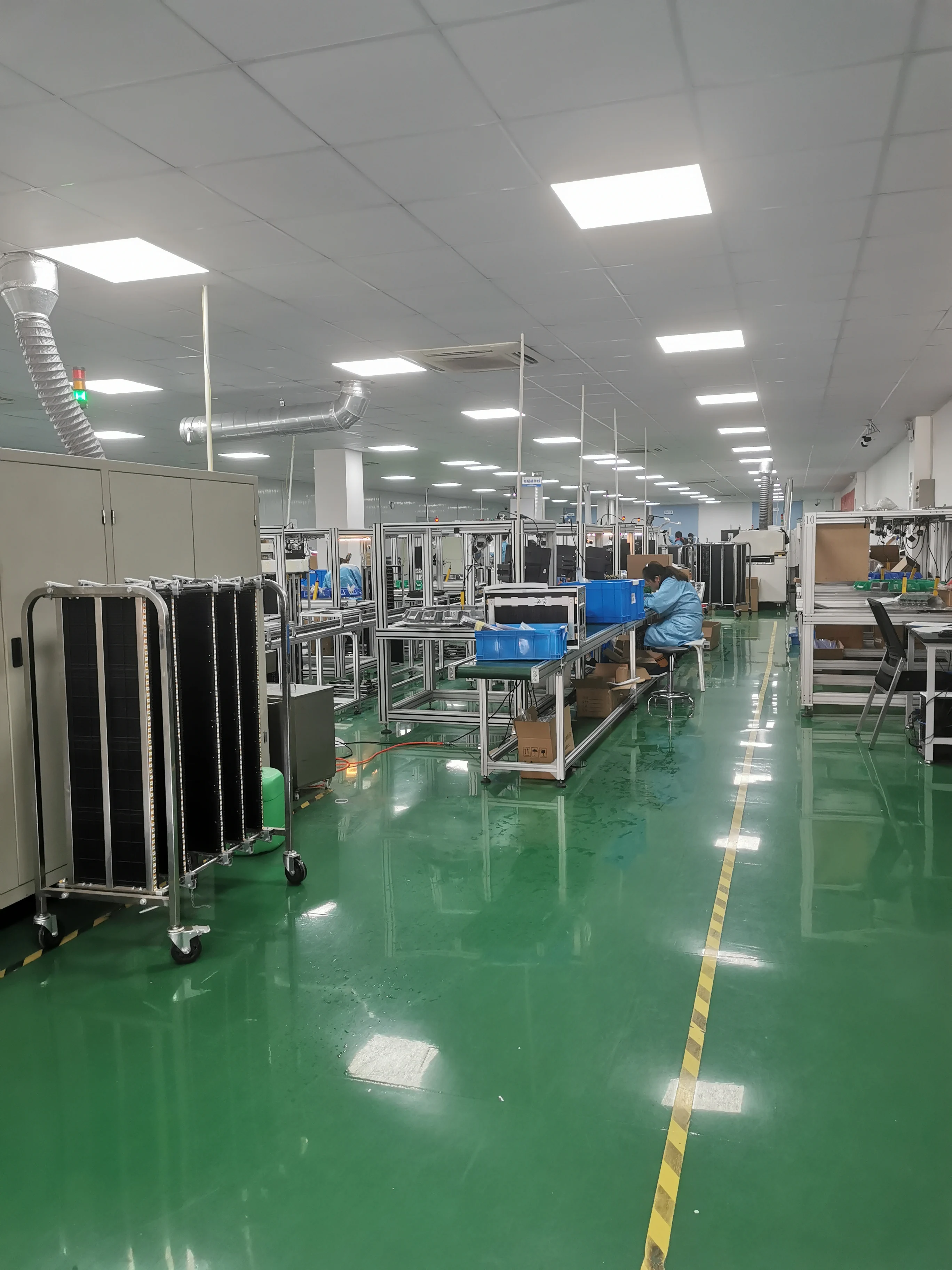

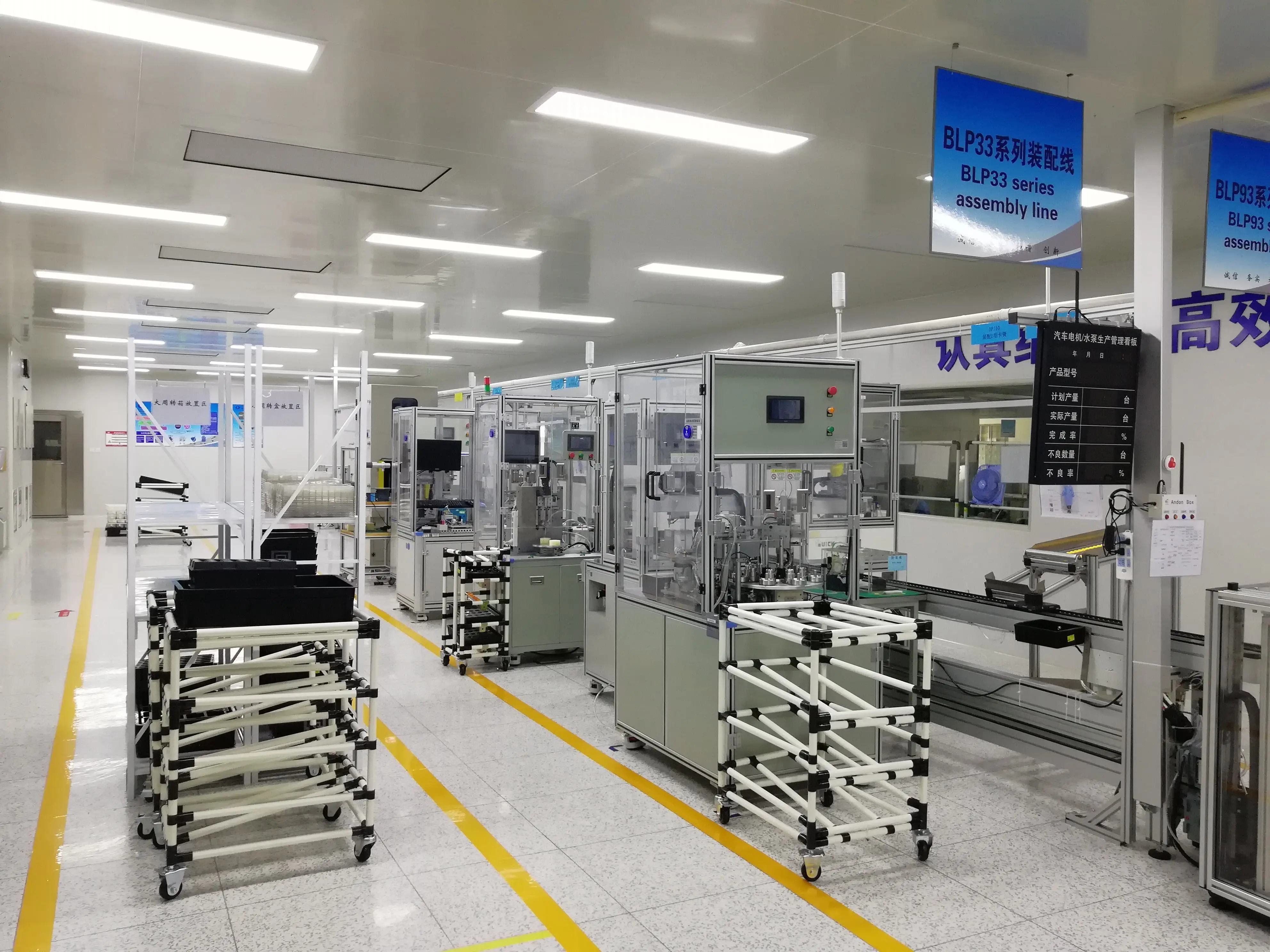

Manufacturing Technique

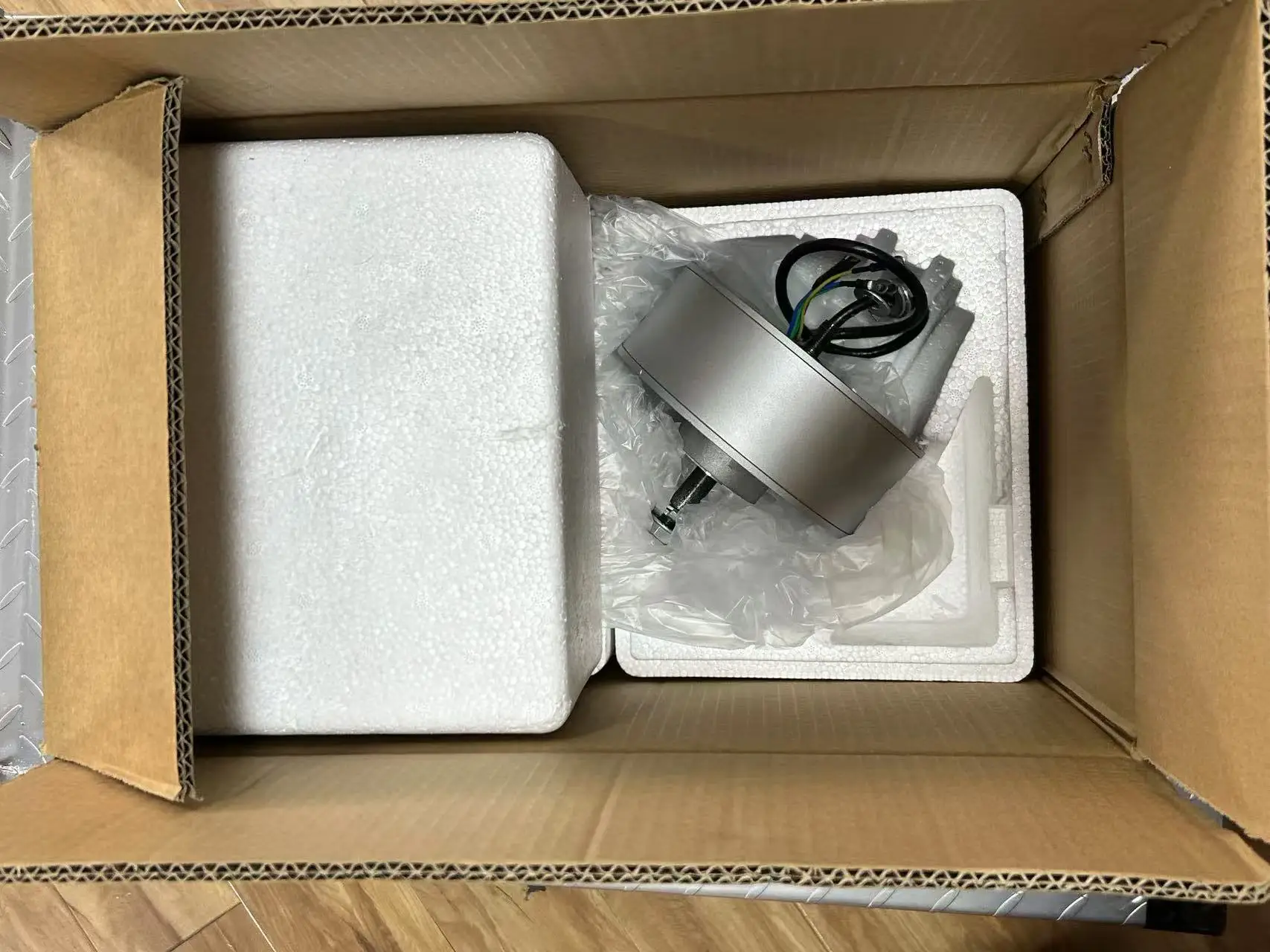

Packing info

The servo motor resistance system well be packed in a carton with foam box.

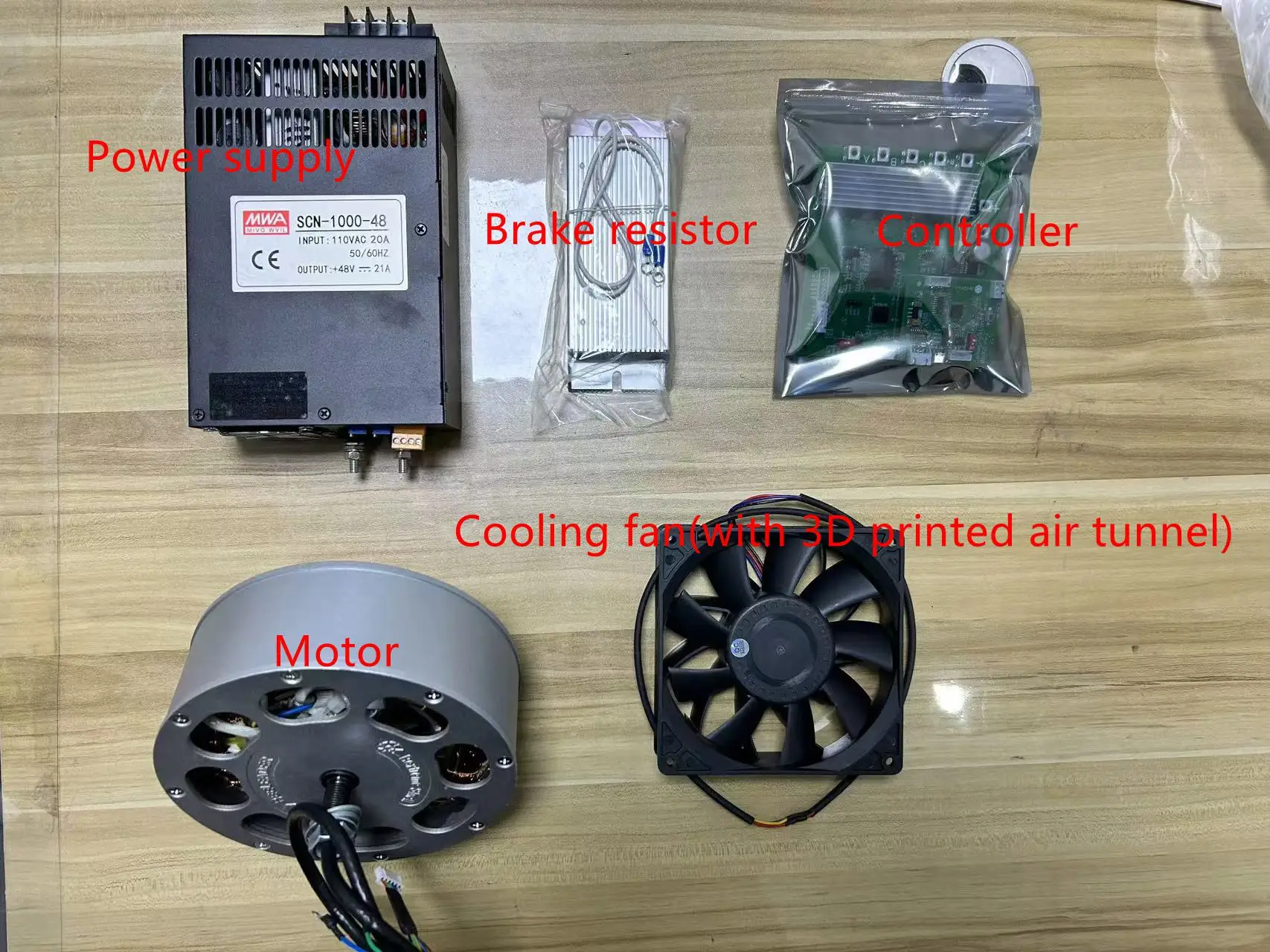

List of items

Including 1*motor, 1*controller, 1*brake resistor, 1*power supply, 1*cooling fan

*We supply a debugging software for controlling with Windows*

FAQ

1:Whats the Lead time?

Sample:in 5 days

Mass order:in 2-3weeks

2:Whats the MOQ?

1 set for all series products

3:Whats the BLDC motor driver Warranty?

12 month from the date of delivery

4:How is the technical support?

We offer 1-1 service& technical support
